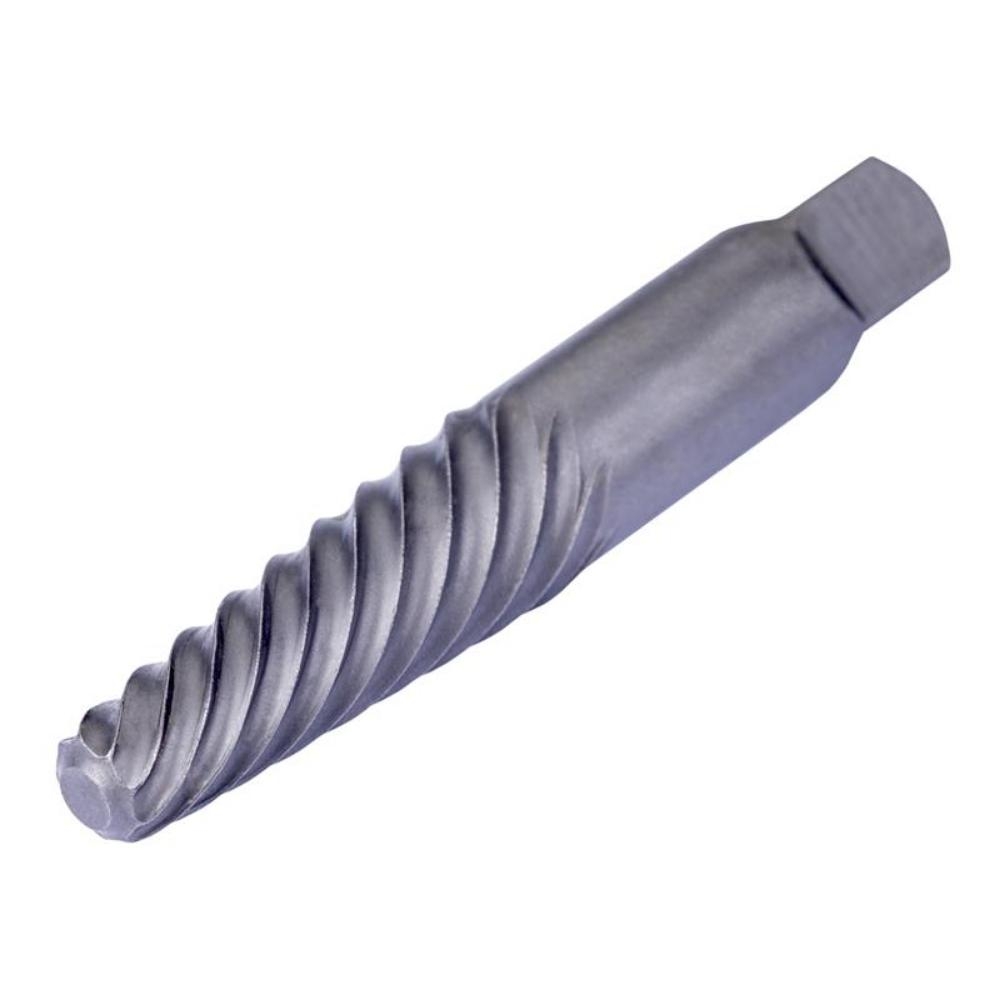

DORMER M900 SCREW EXTRACTOR M12-M14

DORMER M900 SCREW EXTRACTOR M12-M14

Stock Code: DORM9004
Out of Stock
£6.65 (exc VAT) per Each
Quantity: - +

The Dormer M900 Screw Extractors can be used counter-clockwise to remove broken right-handed bolts & screws from threaded holes without damaging threads. It’s necessary to drill a guide hole of proper size before using the extractor.

1 x Dormer M9004 Screw Extractor M12-M14

Specifications:

Bolt Size: M12 - M14
Drill Size for Low/Medium Tensile Screws: 5.5mm
Drill Size for High Tensile Screws (+75 tons/sq.inch): 6mm

Bolt Size Imperial: 7/16 - 9/16in
Drill Size for Low/Medium Tensile Screws: 7/32in
Drill Size for High Tensile Screws (+75 tons/sq.inch): 15/64in

Cutting Diameter Step: 4.37mm
Cutting Diameter Second Cutting Step (DC_2): 8mm
Clamping Width (WSC): 6mm
Clamping Length (LSC): 8mm

Overall Length (OAL): 76.7mm
Net Weight: 24.7g.
